AH-00212-10Z

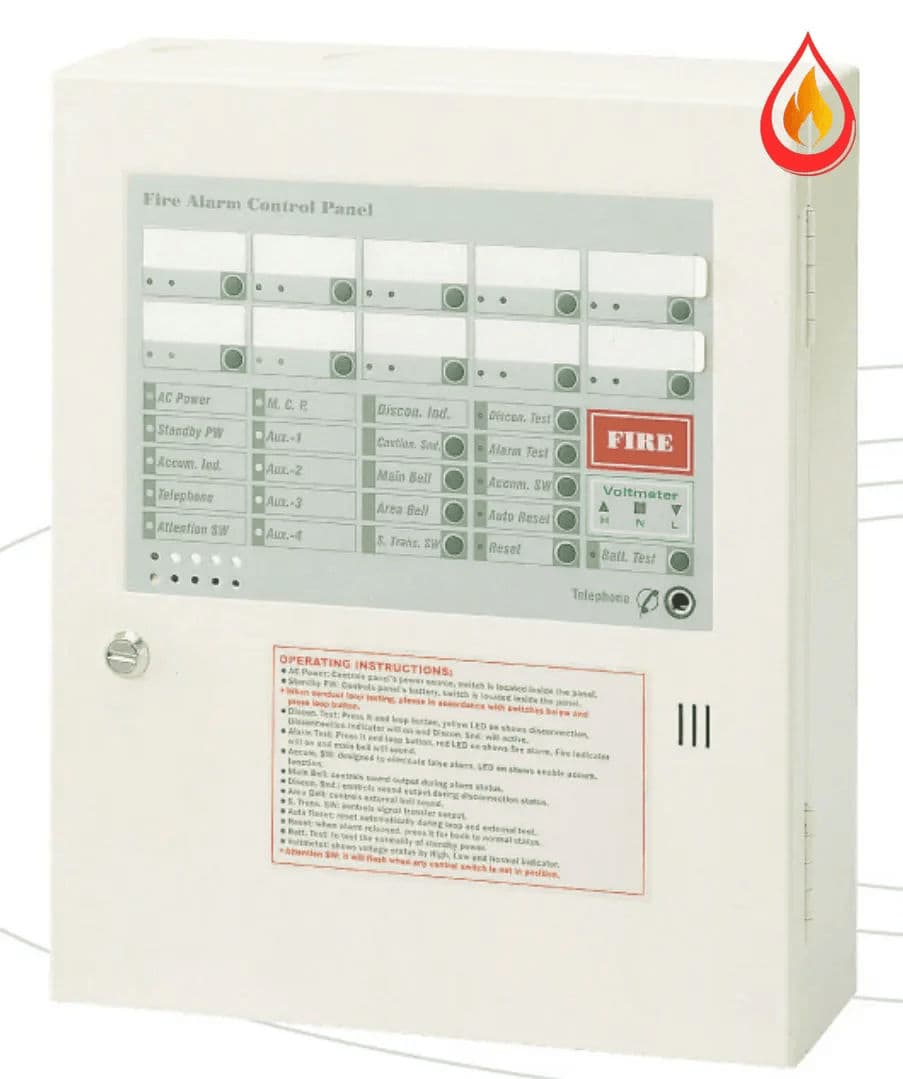

Fire Alarm Control Panel (1~10 Zones)
model
AH-00212 (1~10 Zone)
power
220V AC/50Hz (Others also available)
voltage-scope
Nominal Voltage ±20%
battery-capacity
24V DC 1.2Ah
charging-voltage-current
26V DC 100~400mA (With auto adjustment function)
exterior-resistance
Round-trip under 50Ω
heat-detector-connected
No limit (Except electronic-type)
smoke-detector-connected
30/zone (Horing Lih manufactured)
digital-switch
500,000 Cycles Min. reliability
end-of-line-resistor
10kΩ (One per zone)
max-output-current
1A
material
1.2mm steel plate
color
Ivory white (Others also available)
dimensions
350mm (H) × 285mm (W) × 105mm (D)
accessory-functions
Dual signal transfer contacts, auxiliary contacts
